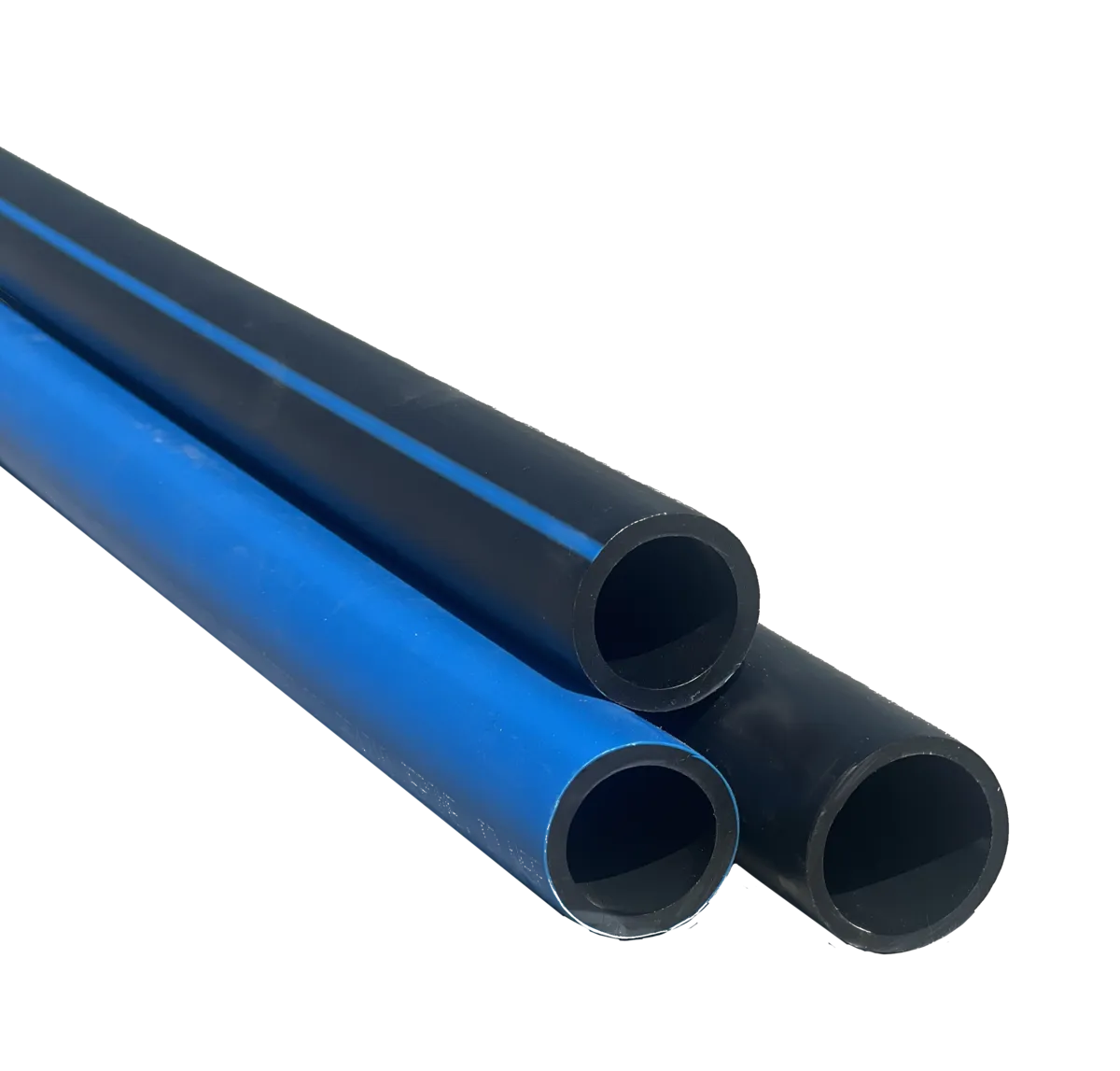

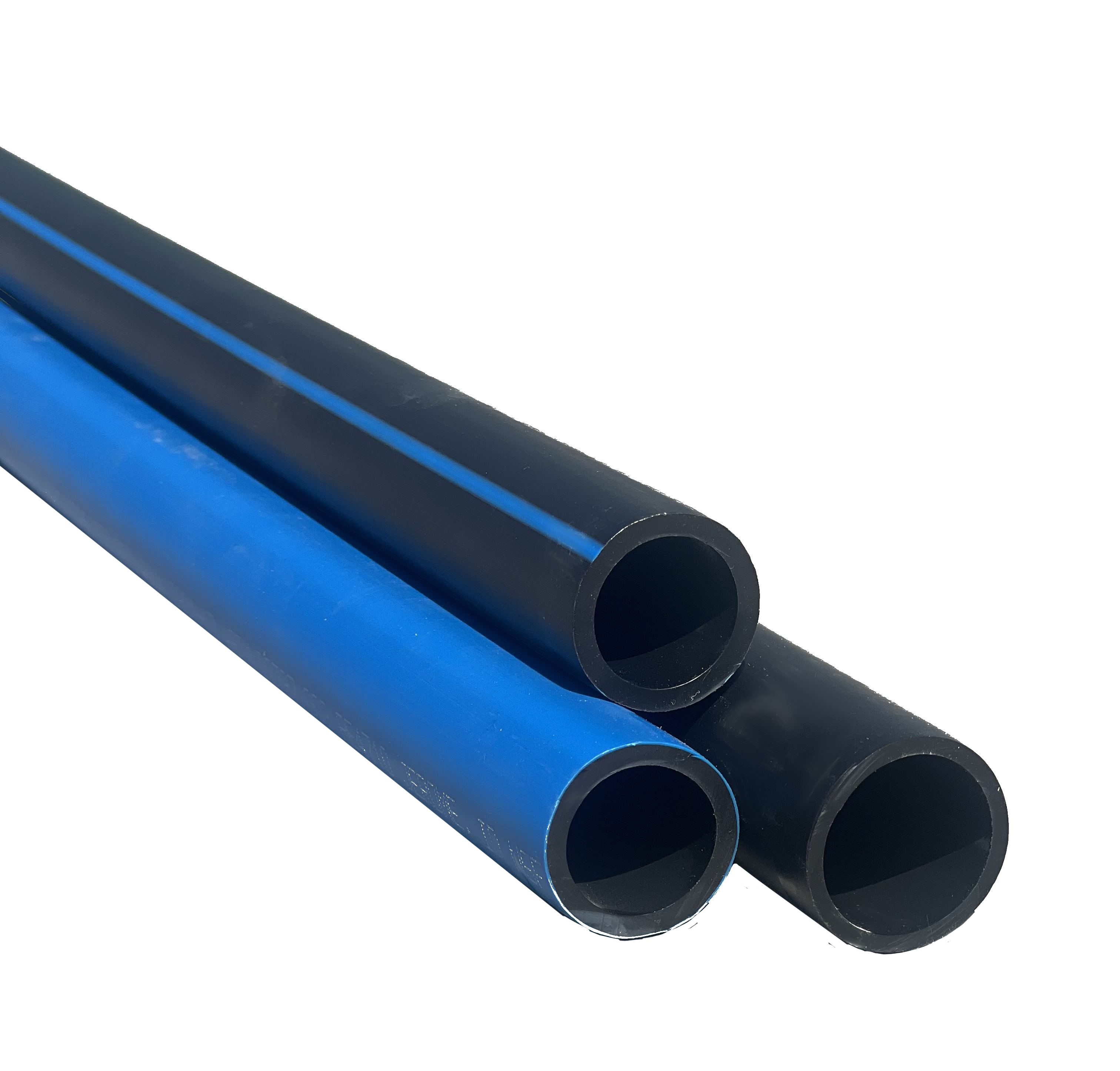

Potable Water Pipe
NSF-certified PE4710 HDPE pipe for safe drinking water distribution
Product Overview
QualPol Potable Water Pipe is specifically designed and certified for drinking water applications, meeting all requirements for safe potable water contact.
Municipal water systems and potable water service. Manufactured using only virgin 4710 resin that meets or exceeds ASTM D3350. NSF approved. Available in Blue, Black, or Purple.
Key Features
NSF Certified
NSF/ANSI 61 & 14 certified for drinking water contact
Blue Identification
Blue color or blue stripe for easy identification
Taste & Odor Free
No impact on water taste, odor, or quality
Lead-Free
Complies with lead-free requirements for drinking water
Specifications
All dimensions in inches
SDR9 CTS (250 PSI)
ASTM D2737 Compression FittingsCopper Tube Size (CTS) - OD controlled to match copper tubing. Use with brass or plastic compression fittings for water service lines.
| Size | OD | ID | Wall | Lb/Ft |
|---|---|---|---|---|
| 3/4" | 0.875 | 0.681 | 0.097 | 0.103 |
| 1" | 1.125 | 0.875 | 0.125 | 0.170 |
| 1-1/4" | 1.275 | 1.069 | 0.153 | 0.254 |
| 1-1/2" | 1.625 | 1.263 | 0.181 | 0.353 |
| 2" | 2.125 | 1.653 | 0.236 | 0.602 |
SIDR 7 (250 PSI)
ASTM D2239 Insert FittingsIron Pipe Size (IPS) - ID controlled. Use with barbed insert fittings and stainless steel clamps.
| Size | OD | ID | Wall | Lb/Ft |
|---|---|---|---|---|
| 3/4" | 1.060 | 0.824 | 0.118 | 0.152 |
| 1" | 1.349 | 1.049 | 0.150 | 0.246 |
| 1-1/4" | 1.774 | 1.380 | 0.197 | 0.424 |
| 1-1/2" | 2.070 | 1.610 | 0.230 | 0.578 |
| 2" | 2.657 | 2.067 | 0.295 | 0.952 |
SIDR 9 (200 PSI)
ASTM D2239 Insert FittingsIron Pipe Size (IPS) - ID controlled. Use with barbed insert fittings and stainless steel clamps.
| Size | OD | ID | Wall | Lb/Ft |
|---|---|---|---|---|
| 3/4" | 1.008 | 0.824 | 0.092 | 0.116 |
| 1" | 1.283 | 1.049 | 0.117 | 0.190 |
| 1-1/4" | 1.686 | 1.380 | 0.153 | 0.320 |
| 1-1/2" | 1.968 | 1.610 | 0.179 | 0.430 |
| 2" | 2.527 | 2.067 | 0.230 | 0.710 |
SIDR 11.5 (160 PSI)
ASTM D2239 Insert FittingsIron Pipe Size (IPS) - ID controlled. Use with barbed insert fittings and stainless steel clamps.
| Size | OD | ID | Wall | Lb/Ft |
|---|---|---|---|---|
| 3/4" | 0.968 | 0.824 | 0.072 | 0.090 |
| 1" | 1.231 | 1.049 | 0.091 | 0.143 |
| 1-1/4" | 1.620 | 1.380 | 0.120 | 0.246 |
| 1-1/2" | 1.890 | 1.610 | 0.140 | 0.335 |
| 2" | 2.427 | 2.067 | 0.180 | 0.544 |
Product Information
Color Options
Blue
Standard potable water identification
Black
2% carbon black for UV protection
Purple
Reclaimed water identification
Applications
Municipal Water Service
Water main connections and service lines for municipal water systems.
Residential Water Lines
Meter-to-house connections and residential water supply.
Rural Water Systems
Rural water district distribution and service connections.
Well Systems
Private well connections and distribution lines.
Water Main Replacement
Replacement of aging water infrastructure.
Commercial Buildings
Commercial and institutional building water service.
Standards & Certifications
Health Effects
Plastics Piping
PE Pressure Pipe
PE Pipe (SIDR-PR)
PE Tubing
